What Is Arc Flash? Hazards, PPE and Workplace Protection Explained

Arc flash is one of the most severe electrical hazards in the workplace — and one of the least understood outside of the industries where it's most common. The energy released in an arc flash event can cause fatal burns, permanent blindness, hearing loss, and blast injuries in a fraction of a second. Yet many workers who operate near energized equipment have only a vague understanding of what arc flash actually is, what causes it, and what protection is required.

For safety managers and employers, closing that knowledge gap is not optional. This guide covers the fundamentals of arc flash — what it is, how it happens, what the standards require, and how to build a protection program that keeps workers safe.

What Is Arc Flash?

An arc flash is a sudden, explosive release of energy caused by an electrical fault — specifically, when electrical current travels through the air between conductors or between a conductor and ground. The result is an uncontrolled electrical discharge that releases intense heat, blinding light, pressure waves, and molten metal in the form of a fireball that expands outward from the point of the fault.

The temperatures generated in an arc flash event are extreme — the arc itself can reach temperatures of around 35,000 degrees Fahrenheit, roughly four times the surface temperature of the sun. At those temperatures, copper conductors vaporize and expand to thousands of times their original volume almost instantaneously, creating a pressure wave capable of throwing workers across a room and destroying nearby equipment.

What Causes an Arc Flash?

Arc flash can be triggered by a range of factors, many of which are mundane and easily overlooked. Common causes include:

Equipment failure. Insulation that has degraded over time, loose connections, and corroded components can all create conditions where current takes an unintended path through the air.

Human error. Accidentally contacting energized equipment with a tool, dropping a conductive object across bus bars, or working on equipment that wasn't properly de-energized are among the most common causes of arc flash incidents in the field.

Contamination. Dust, moisture, and conductive particles can bridge the gap between conductors and initiate an arc. This is why switchgear and electrical panels in industrial environments require regular cleaning and inspection.

Improper work procedures. Working on or near energized equipment without following proper lockout/tagout procedures dramatically increases the risk of arc flash. Even brief contact with energized components in the wrong conditions can initiate a fault.

Arc Flash vs. Arc Blast

These two terms are sometimes used interchangeably but refer to different aspects of the same event. Arc flash refers specifically to the thermal energy — the intense heat and light released when the arc occurs. Arc blast refers to the mechanical energy — the pressure wave and concussive force generated by the rapid expansion of vaporized metal and superheated air. Both happen simultaneously in an arc flash event, and both must be accounted for in protection programs. A worker positioned close to an arc flash event may survive the thermal exposure but sustain serious blast injuries, or vice versa.

Why Arc Flash Is So Dangerous

The danger of arc flash stems from several factors that combine to make it uniquely difficult to protect against compared to other electrical hazards.

The Speed of the Event

An arc flash event is over in milliseconds. There is no warning and no time to react. A worker who is in the arc flash boundary when a fault occurs has no opportunity to move out of the way — protection has to be in place before work begins, not applied in response to a developing hazard.

The Energy Involved

The amount of energy released in an arc flash is determined by the available fault current at the point of the fault and how long it takes the upstream protective device — a circuit breaker or fuse — to clear the fault. Higher available fault current and slower protective devices mean more energy released. In some industrial settings, the incident energy at a worker's position can be high enough to cause fatal burns even with significant distance between the worker and the arc point.

The Range of Hazards

A single arc flash event produces multiple simultaneous hazards: intense thermal radiation that can cause severe burns through clothing at significant distances, blinding light, a pressure wave that can rupture eardrums and throw workers, molten metal projected at high velocity, and toxic gases from vaporized materials. Each of these requires a different type of protection, which is why arc flash personal protective equipment (PPE) is substantially more complex than standard electrical PPE.

Understanding Arc Flash Boundaries

One of the core concepts in arc flash safety is the idea of boundaries — defined distances from a potential arc flash point within which specific levels of protection are required.

The Arc Flash Boundary

The arc flash boundary is the distance at which a worker without arc-rated PPE could receive a second-degree burn from the thermal energy released in an arc flash event. Inside this boundary, arc-rated PPE is mandatory. The boundary distance is calculated based on the incident energy at the specific equipment — higher incident energy means a larger boundary.

The Limited Approach Boundary

The limited approach boundary applies to shock hazards rather than arc flash specifically. It's the distance within which only qualified electrical workers are permitted to approach energized conductors. Unqualified workers — those without specific electrical safety training — must stay outside this boundary unless accompanied by a qualified person.

The Restricted Approach Boundary

The restricted approach boundary is a closer distance from energized conductors where the risk of shock is significantly elevated. Within this boundary, qualified workers must use insulated tools, wear appropriate PPE for the voltage level, and have a specific plan for the work being performed.

The Prohibited Approach Boundary

The prohibited approach boundary is the distance within which contact with an energized conductor is considered essentially certain. Working within this boundary requires the same level of precaution as direct contact with the conductor.

Arc Flash PPE: What It Is and How It Works

Arc flash PPE is designed specifically to protect workers from the thermal energy released during an arc flash event. It is fundamentally different from standard electrical PPE, which is designed primarily for shock protection, and the two should not be confused.

Arc Ratings and Calories

Arc flash PPE is rated in calories per square centimeter (cal/cm²) — a measure of the incident energy the garment can withstand before the wearer would sustain a second-degree burn on the skin underneath. A garment rated at 8 cal/cm² provides protection against incident energy up to that level. A garment rated at 40 cal/cm² provides substantially more protection and is significantly heavier and more cumbersome to wear.

Matching the arc rating of the PPE to the calculated incident energy at the work location is the fundamental principle of arc flash PPE selection. Wearing PPE with a lower arc rating than the incident energy at the work location provides a false sense of security — the garment will fail to protect the wearer.

Arc Flash Suits and Clothing

For lower incident energy levels, arc-rated clothing — long-sleeved shirts, pants, and coveralls made from arc-rated materials — may be sufficient. These fabrics are designed to resist ignition and not to melt or drip when exposed to an arc flash, both of which would dramatically worsen burn injuries.

For higher incident energy levels, a full arc flash suit is required. These suits include arc-rated coveralls, a balaclava, an arc-rated face shield or hood, gloves, and arc-rated footwear. Full arc flash suits can be heavy and hot, and selecting the right suit for the specific incident energy level — rather than defaulting to the highest-rated option — improves wearability without compromising protection.

Arc Flash Face Protection

The face and eyes are among the most vulnerable areas in an arc flash event. Arc-rated face shields and hoods are designed to protect against both the thermal and optical hazards of an arc. Standard safety glasses and face shields are not arc-rated and provide no meaningful protection against arc flash. Any worker within the arc flash boundary must have appropriate face protection — and that protection must be arc-rated to the appropriate incident energy level.

Insulated Gloves

Rubber insulating safety gloves with leather protectors provide shock protection when working on or near energized conductors. They are rated by voltage class and must be tested and in date to be considered reliable. Gloves alone do not provide arc flash protection for the hands — arc-rated gloves or gloves worn with arc-rated sleeves are required for thermal protection.

Arc Flash Studies and Risk Assessments

Selecting appropriate PPE requires knowing the incident energy at each piece of equipment workers may interact with. That information comes from an arc flash study — a formal engineering analysis of the electrical system.

What an Arc Flash Study Involves

An arc flash study models the electrical system to calculate the available fault current at each point in the system and the time it would take for protective devices to clear a fault. From that information, the incident energy at each location — and the corresponding arc flash boundary — can be calculated. The results are typically documented on arc flash labels affixed to each piece of equipment.

Arc Flash Labels

Arc flash labels translate the results of the arc flash study into practical guidance for workers. A properly formatted arc flash label shows the incident energy at the equipment, the arc flash boundary, the minimum arc rating of PPE required, the limited and restricted approach boundaries, and the available fault current. Workers should be trained to read and act on this information before beginning any work near the labeled equipment.

When Studies Need to Be Updated

An arc flash study is not a permanent document. Any change to the electrical system — new equipment, changes to protective device settings, utility changes, or facility expansion — can alter the incident energy levels and boundaries calculated in the original study. Best practice is to review and update arc flash studies whenever significant changes occur and to perform a full update at regular intervals regardless of whether changes have been made.

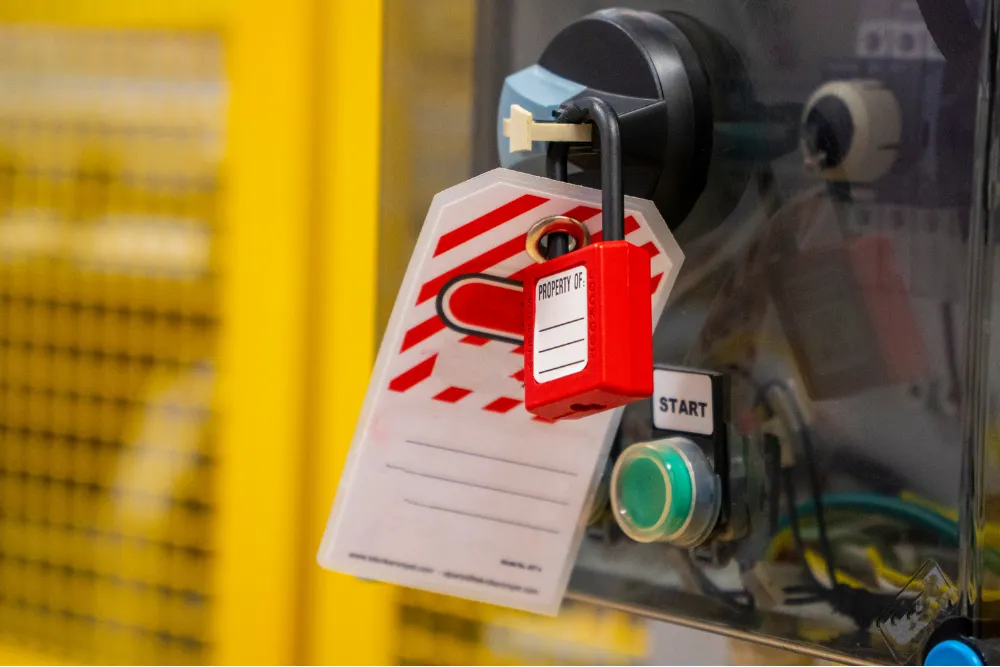

Lockout/Tagout and the Relationship to Arc Flash Safety

The most effective protection against arc flash is eliminating the hazard entirely — de-energizing equipment before working on it. Lockout/tagout (LOTO) procedures are the mechanism for doing that safely, and they're a foundational element of any electrical safety program.

Why LOTO Matters for Arc Flash

When equipment is properly de-energized and locked out, arc flash cannot occur. The hazard is gone. This is why the hierarchy of controls places elimination above PPE in every safety framework — PPE protects workers when they're exposed to a hazard; LOTO removes the hazard. For any task that can be performed on de-energized equipment, lockout/tagout should be the standard approach.

When Energized Work Is Necessary

There are tasks that require working on or near energized equipment — certain diagnostic and testing procedures, work where de-energizing would create a greater hazard, or situations where continuous operation is a critical requirement. In these cases, energized electrical work permits are required in most jurisdictions, and appropriate arc flash PPE must be worn. Energized work should be treated as the exception, not the default.

Training Requirements for Arc Flash Safety

Knowledge and PPE together form the foundation of arc flash protection. Workers who don't understand the hazard, can't read an arc flash label, or don't know how to properly don their PPE are not adequately protected regardless of what equipment they've been issued.

Who Needs Arc Flash Training

Any worker who works on or near energized electrical equipment needs arc flash awareness training at minimum. Qualified electrical workers who perform energized work need a deeper level of training that covers incident energy concepts, PPE selection, the use of arc flash labels, energized work permit procedures, and emergency response.

What Training Should Cover

Arc flash training should cover what arc flash is and why it's dangerous, how to identify arc flash hazards, how to read arc flash labels, what PPE is required and how to use it correctly, when LOTO applies and how to implement it, and what to do in the event of an arc flash incident. Training should be refreshed regularly and whenever workers are assigned to new equipment or environments with different electrical hazard profiles.

Frequently Asked Questions on Arc Flash

What Is an Arc Flash and How Is It Different From a Regular Electrical Shock?

An arc flash and an electrical shock are distinct hazards that can occur in electrical environments, though they can happen simultaneously. An electrical shock occurs when current passes through the body — typically when a worker makes contact with an energized conductor and provides a path to ground. The injury results from the current traveling through body tissue, which can cause cardiac arrest, muscle damage, and burns at the entry and exit points.

An arc flash, by contrast, doesn't require the worker to touch anything. It's an explosive release of energy that occurs when electrical current jumps through the air between conductors or to ground, releasing intense heat, light, pressure, and molten metal outward from the fault point. A worker can sustain severe arc flash injuries while standing several feet away from the equipment without making any physical contact. This is what makes arc flash particularly dangerous — proximity to energized equipment is enough to put a worker at risk, and the event happens too fast for any physical response.

How Is Incident Energy Calculated and Why Does It Matter?

Incident energy is the amount of thermal energy delivered to a surface at a specific distance from an arc flash, measured in calories per square centimeter. It's calculated through an arc flash study that models the electrical system — specifically, the available fault current at each point and the time the upstream protective device takes to clear the fault. Higher fault current and slower clearing times result in higher incident energy.

The calculation matters because it determines two critical things: the arc flash boundary — the distance within which a worker without arc-rated PPE could receive a second-degree burn — and the minimum arc rating of PPE required for work at that location. Without incident energy data, PPE selection is essentially guesswork. A worker wearing 8 cal/cm² PPE at a location with 25 cal/cm² of incident energy has inadequate protection, regardless of how well the equipment fits or how correctly it's worn.

What Does Arc-Rated Mean and How Is It Different From Flame-Resistant?

Flame-resistant and arc-rated are related but not interchangeable terms. Flame-resistant describes a fabric's ability to resist ignition and self-extinguish when the ignition source is removed — it will not continue to burn once the flame is gone. Arc-rated describes a fabric's ability to protect the wearer from a specific level of arc flash incident energy, as measured by standardized testing. All arc-rated fabrics are flame-resistant, but not all flame-resistant fabrics are arc-rated.

A garment marketed as flame-resistant without an arc rating has not been tested against arc flash and cannot be relied upon for arc flash protection. When selecting PPE for work within arc flash boundaries, the arc rating — expressed in cal/cm² — is the relevant specification, and it must meet or exceed the calculated incident energy at the work location.

What Should You Do if an Arc Flash Occurs?

If an arc flash occurs, the immediate priorities are getting clear of the hazard, calling for emergency assistance, and providing first aid to anyone injured. Workers in the vicinity should move away from the affected equipment immediately — the arc may not be over, and secondary faults can occur. Anyone showing signs of burn injury, blast injury, or shock should be treated as a medical emergency. Do not remove clothing that may be adhered to burned skin.

Arc flash injuries often look less severe than they are in the immediate aftermath because the full extent of thermal injury isn't always apparent right away. Emergency services should be contacted immediately for any injury, and the incident should be reported and investigated as soon as it's safe to do so. The investigation should focus on understanding why the arc flash occurred, whether the worker's PPE performed correctly, and what changes to equipment, procedures, or training are needed to prevent recurrence.

Are Employers Legally Required to Conduct Arc Flash Studies?

The legal landscape around arc flash studies varies by jurisdiction, but the general direction across most developed regulatory frameworks is toward requiring employers to assess electrical hazards — which in practice means conducting or commissioning arc flash studies for facilities with significant electrical infrastructure. In the United States, OSHA's electrical standards require employers to assess hazards and provide appropriate protection, and NFPA 70E — the standard for electrical safety in the workplace — provides detailed guidance on arc flash risk assessment that is widely referenced by regulators and courts.

In Australia, the Work Health and Safety laws require employers to manage electrical risks, and AS/NZS 3000 and related standards provide the technical framework. Even where a specific regulation doesn't explicitly mandate an arc flash study by name, the obligation to identify hazards and provide appropriate PPE effectively requires the same information that a study produces. Employers who have not conducted arc flash studies on facilities with significant electrical hazards are taking on meaningful legal and safety risk.
